Type MNBX

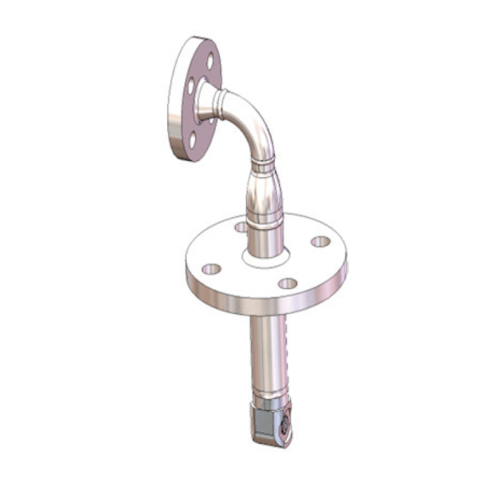

Steam Desuperheater Leslie
The BYVAP steam desuperheater type MNBX is designed for accurate and cost effective steam temperature control. The MNBX is a complete temperature control valve and cools the superheated steam by introducing water into the steam flow via a high efficiency nozzle design.
- Water flanges ½” to 1” – DN15 to DN25
- Steam flanges 1 ½” - DN40
- Material: Stainless steel 1.4404 / AISI 410
- Flanges: PN16, 25, 40, 100 according to EN 1092-1 Class 300, 600, 900 according to EN 1759-1
- Design ANSI B16-34 Class 900
- Minimum temperature above saturation 5°C
- Accuracy: +/- 1,5%
- Temperature range: 840°F / 450°C
