Type MNB

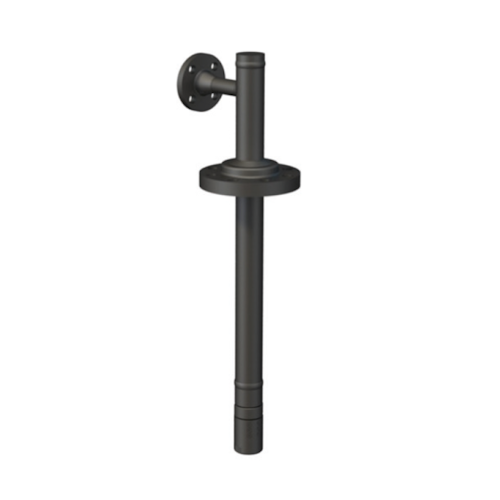

BYVAP® Steam Desuperheater Leslie
The BYVAP steam desuperheater type MNB is designed for accurate and cost effective steam temperature control. The MNB is a complete temperature control valve and cools the superheated steam by introducing water into the steam flow via a high efficiency multi nozzle design.
- Body material: 1.7383 / A182 F22 cl3 1.0352 / A105
- Seat material: stellite • TMS: 1060°F / 570°C
- PMS: 2,175 PSI / 150 bar • ΔPMax: 1,740 PSI / 120 bar
- PN250 / Class1500 • Steam flange 3”
- DN80
- Water flange: 1”/1 ½”
- DN25/DN40 • Water turndown ratio up to 16:1
- Minimum temperature above saturation 41°F / 5°C
- Accuracy: +/- 1,5
- Design code : ANSI B16.34 class 1500/250
