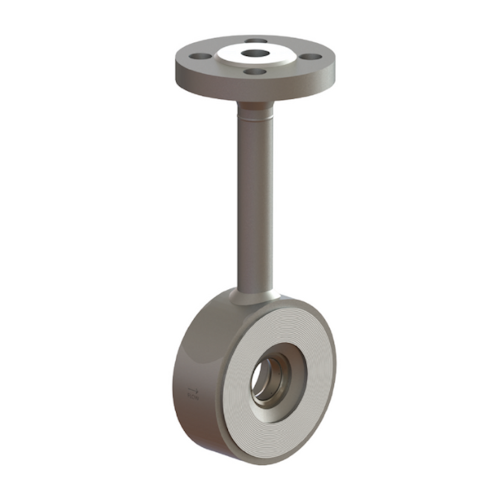

Type DVX
BYVAP® Steam Desuperheater
The BYVAP steam desuperheater type DVX is designed for accurate and cost effective steam temperature control.The desuperheater DVX is a complete temperature control product cooling the superheated steam by introducing water into the steam flow, because of a multi-hole nozzle design combined with a Venturi effect.
- Body material : 1.4404 / A182 F316L
- TMS : 930°F / 500°C • PN250 / Class1500
- Water flange: ½”/ 1” / DN15/DN25
- Minimum temperature above saturation 41°F / 5°C
- Accuracy: +/- 1,5%
