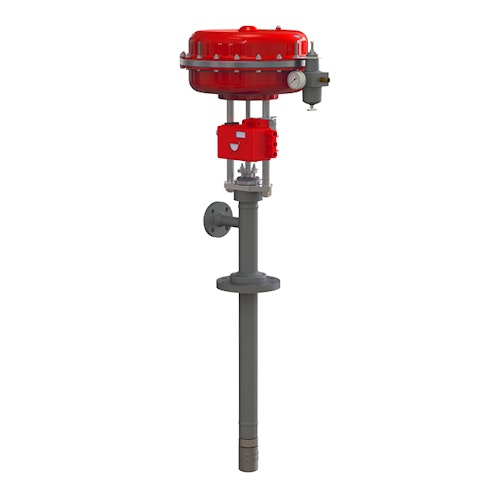

Type DMBC
BYVAP® Steam Desuperheater
The BYVAP steam desuperheater type DMBC is designed for accurate and cost effective steam temperature control. The DMBC is a complete temperature control valve and cools the superheated steam by introducing water into the steam flow via a high efficiency multi nozzle design. Temperature can be controlled by a pneumatic or electric actuator.
- Body material: 1.7383 / A182 F22 cl31.0352 / A105
- Seat material: stellite
- TMS: 1060°F / 570°C
- PMS: 2,175 PSI / 150 bar
- ∆PMax: 1,740 PSI / 120 bar
- PN250 / Class1500
- Steam flange Size 3” - DN80
- Water flange: Size 1”/1 1⁄2” - DN25/DN40
- Water turndown ratio up to 33:1
- Minimum temperature above saturation 5°C
- Accuracy: +/- 1,5%
- Design code: ANSI B16.34 class 1500/2500
