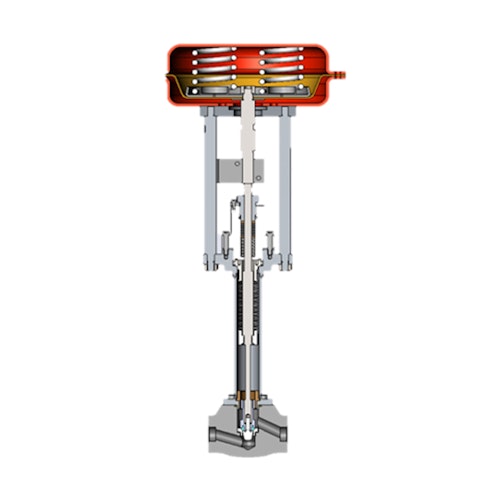

C-230 CRYO - PLUG

The C230 CRYO are Control Valves, especially designed for Cryogenic Applications. The body has a globe straight pattern flow, hydraulically designed to obtain a high flow coefficient CV with low pressure drop.

The C230 CRYO PLUG pneumatic valves are globe control valves with pneumatic actuator, air function OPEN (Normally CLOSED) or air CLOSE (normally OPEN). They are suitable to be used with cryogenic fluids up to -196 °C due their extended bonnet with below, and graphite stem packing. The body has a globe straight pattern flow, hydraulically designed to obtain a high flow coefficient CV with low pressure drop.

The valves C230 CRYO PLUG are manufactured according to ASME B16.34 and comply with 2014/68/UE (PED) Standards requirements.

DN: 15 (1/2”) to 50 (6”)
Pressure class: 150 to 2500
Cryogenic Service: LN2, LOX, GH2, GHe
Temperature: -196°C / -320°F

Plug design:
- Equal Percentage
- Linear
- Micro flow

Actuator: Vogt Type AVL1/AVl2

Standard Design:
- Soft seated (Class VI)
- Globe valve
- Upper Guide
- Bellows Seal
- PTFE Soft Seal VIClass

Options:
- Metal Seated (Class IV)
