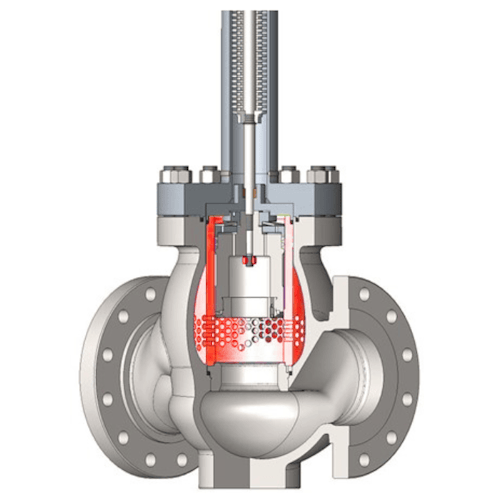

C-230 CRYO CRYO - CAGE

The C230 CRYO are Control Valves, especially designed for Cryogenic Applications. The body has a globe straight pattern flow, hydraulically designed to obtain a high flow coefficient CV with low pressure drop.

The C230 CRYO CAGE pneumatic valves are globe control valves with pneumatic actuator air function OPEN (normally CLOSED) or air CLOSE (normally OPEN). They are suitable to be used with cryogenic fluids up to -203 °C due to their extended bonnet with bellow and graphite stem packing. The body has a globe straight pattern flow, hydraulically designed to obtain a high flow coefficient CV with low pressure drop , the "CAGE" plug is especially designed for cryogenic fluids at low temperature and also allows the use of balancing plug at high differential pressures. The actuator is of pneumatic diaphragm type with supply up to 6 bar g.

The valves C230 CAGE are manufactured according to ASME B16.34 and comply with the 2014/68/UE Standards requirements.

DN: 15 (1/2”) to 50 (6”)
Pressure class: 150 to 2500
Cryogenic Service: LN2, LOX, GH2, GHe
Temperature: -196°C / -320°F

Actuator: Vogt Type AVL1/AVl2

Standard Design:
- Soft seated (Class VI)
- Single and Double Cage
- Balanced Obturator
- Upper Guide
- Bellows Seal
- PTFE Soft Seal VIClass

Options:
- Metal Seated (Class IV)
- Cage with multistage design
